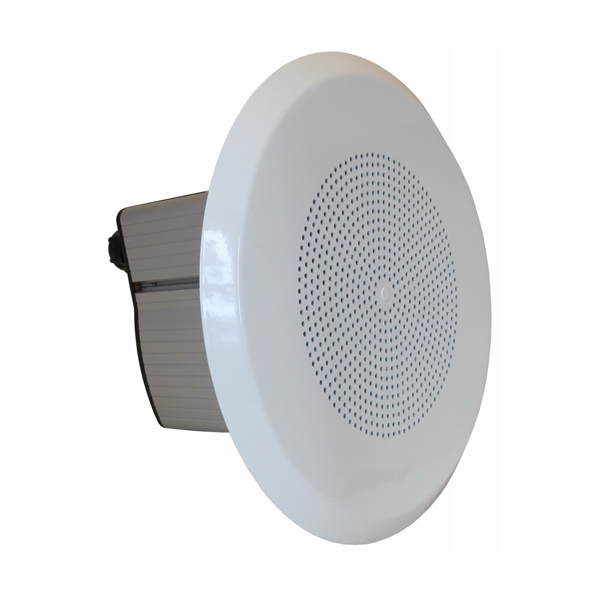

Speaker BAREEX-36(T)

Speaker BAREEX-36(T)

Rotate grill counterclockwise to remove it.
Remove the terminal lid by one screw.
Lead cable thought cable gland.
Fasten loudspeaker to wall or ceiling with four screws (max. Ø 4,2mm).
Terminate the cable in the screw terminal (select required tapping).
Fasten the terminal lid by one screw with a torque of 1,5 Nm to assure the IP rating.
Use only certified/specified cable glands and blanking plugs.
Standard model delivered with two M20 Ex approved plastic blinding plugs.
Ex-loudspeakers must be earthed correctly using the specially marked screws.
For optimum performance, always use the correct voltage / power and operate within the frequency limits as
Do not open loudspeaker when energized.
This loudspeaker is supplied with two years warranty against defective workmanship.


Material / Color



Weight w/transformer


Max. / min. amb. temp

Rated / max. power

SPL 1W/1m

SPL rated power

Effective freq. range

Dispersion (-6dB) 1kHz / 4kHz

Directivity factor, Q 1kHz


Aluminum / anodized

4 screws

e-chamber, screw terminals

2,35 kg

67 in e-chamber

40C / -20C

6 W / 6 W

85 dB

92 dB

180 – 15000 Hz

118˚ / 24˚


Impedances, colors, labels
